Bringing the Davenport Precinct from Digital File to Physical Model
At Printer Under the Stairs, we specialise in turning digital files into accurate, real‑world objects — and this week we completed a project that marked an exciting milestone for us: our first architectural 3D printing project.
We were contacted by an architecture student who urgently needed a physical model of the Davenport Precinct for an assignment presentation. They already had an STL file of the precinct, but were uncertain about layout, scale, and the finer technical details required to successfully print and present the model. With a tight deadline and a complex file, this project became a perfect example of how technical expertise and clear communication can turn a challenging brief into a successful outcome.
The Brief: A Detailed Precinct Model on a Tight Timeline
The initial STL file represented a full urban precinct, featuring:
- Numerous building masses
- Detailed street and road layouts
- Central focal elements
- Fine geometric details that needed to remain legible at scale
While the digital model existed, it wasn’t immediately ready for physical production. Architectural models require careful planning to ensure that details survive the printing process and that the final result communicates the design clearly during presentation.
Technical Advice and Collaborative Problem‑Solving
Rather than simply printing the file as received, we contacted the client directly to offer practical, professional technical advice.
We discussed:
- Appropriate scaling for a presentation‑ready model
- Minimum feature sizes to avoid fragile or failed prints
- The best way to segment the precinct to suit printer bed constraints
- Orientation strategies to achieve clean edges and consistent heights
- How the model would be assembled for the final presentation
This early consultation ensured the printing process was efficient and that the final model would be fit for purpose, both technically and visually.
Preparing the STL: Dividing the Model into Six Print Plates
Due to the overall size of the Davenport Precinct and the level of detail involved, the model needed to be broken down before printing.

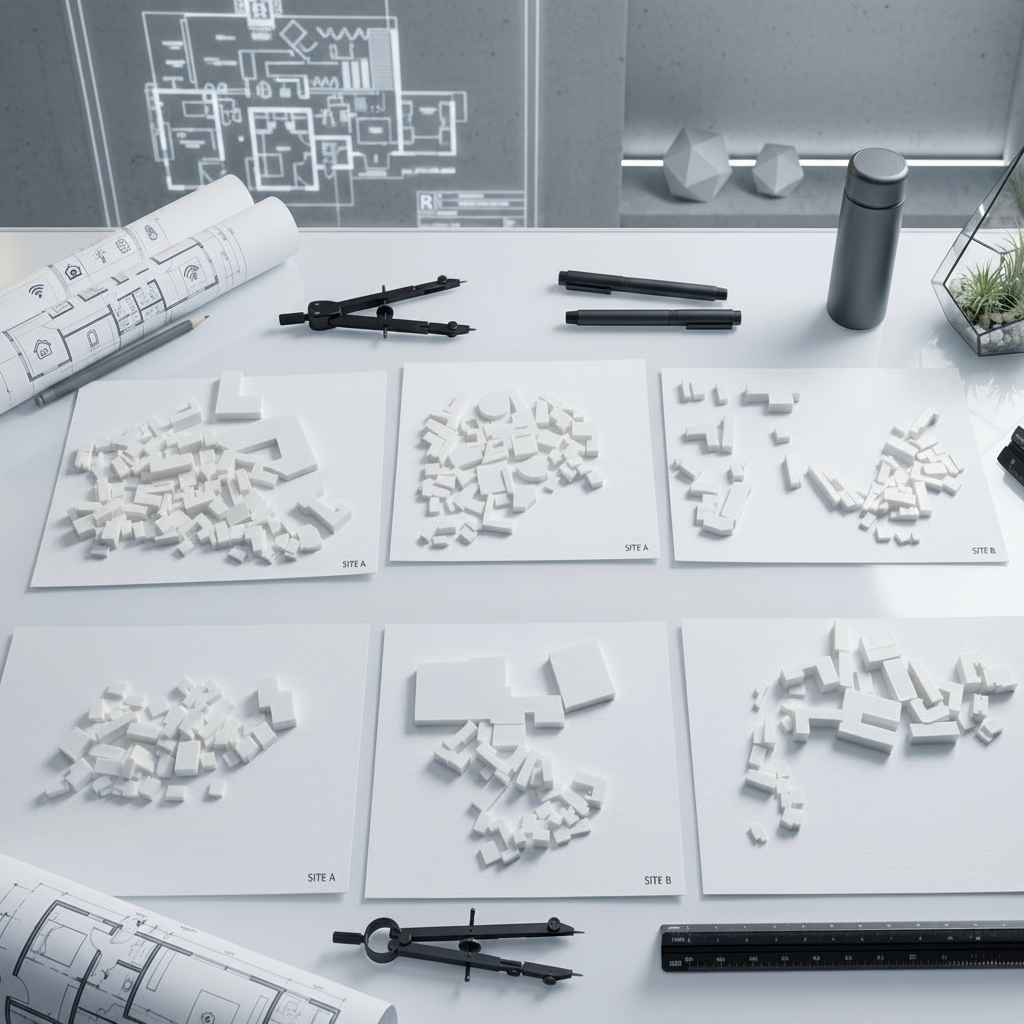

We carefully re‑worked the STL file and set the precinct out across six individual print plates. This approach allowed us to:
- Maintain accurate proportions across the entire model
- Preserve fine architectural detail
- Optimise print orientation for clean, sharp results
- Fit the model within printer size limits
- Ensure all plates could be aligned easily after printing
Consistency across all six prints was critical, so identical settings were used to ensure the assembled model read as a single, cohesive precinct.
Printing for Clarity, Accuracy, and Presentation
The model was printed in white filament, a standard choice for architectural models due to its ability to highlight form, massing, and spatial relationships without distraction.
Print settings were chosen to prioritise:
- Clean, sharp building footprints
- Consistent vertical walls
- Clear road and circulation networks
- Minimal post‑processing
The result was a set of clean, precise components, ready to be assembled and presented as part of the assignment.
Fast Turnaround Without Compromising Quality
With a tight deadline in place, speed was essential. From initial consultation and STL preparation through to printing and collection, the project was completed with a fast turnaround, while maintaining a high standard of print quality.
The client collected the six printed plates and successfully assembled them into a complete Davenport Precinct model, ready for assessment and presentation.
This project marked Printer Under the Stairs’ first step into architectural 3D printing, and it demonstrated exactly what we aim to deliver: accurate prints, clear communication, and reliable technical support.
Seeing a complex digital precinct transformed into a physical model was hugely rewarding, and we’re proud to have played a part in bringing this project to life.
Architectural 3D Printing Services in Durban
Whether you’re working on an architectural project, an urban design concept, or a presentation model, we can help with:
- STL file preparation and optimisation
- Scale and layout advice
- Architectural and precinct‑scale 3D printing
- Fast, reliable turnaround times
- Friendly, professional technical guidance
If you need architectural 3D printing in Durban, get in touch with Printer Under the Stairs — and let’s turn your digital designs into physical reality.
